Qisqa kirish

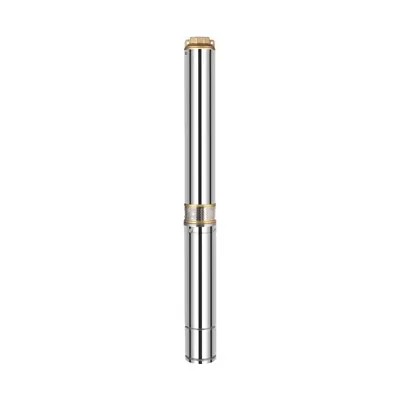

Chuqur sug'orish nasoslari qishloq xo'jaligini sug'orish uchun er osti manbalaridan suv quyish uchun mo'ljallangan ixtisoslashgan nasos tizimidir. Ushbu nasoslar qishloq xo'jalik ekinlarini suv bilan ta'minlashni, ayniqsa sirt suvi cheklangan yoki ishonchsiz bo'lgan joylarda suv bilan ishonchli suv ta'minotini ta'minlashda hal qiluvchi rol o'ynaydi.

Texnik parametrlar

1. Munosib suyuqlik: aslida shaffof, qattiq yoki abraziv zarralarsiz, kimyoviy neytral va suvga o'xshash xususiyatlar bilan.

2. Aylanish tezligi diapazoni: N≈2850 RPM.

3. Maksimal suyuq harorat: +35 darajasiga.

4. Maksimal qum tarkibi: 0, 25%.

5. Maksimal cho'milish chuqurligi: 80 m.

6. Nemu o'lchamlari, egri chiziqlar ISO 9906 ga mos keladi.

7. Quvvat: yakka-yakka-yakka va 240vz / 50hz, 60hz.

Texnik parametrlar

						Burun g 1 1}}}}} {4 "~ g {2}} / 2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h		0}	0.3	0.6	0.9	1.2	1.5	1.8	2.1	2.4	2.7	3.0	3.3
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min		0}	5	10	15	20	25	30	35	40	45	50	55
01	4sdm2 / 6		0.25	0.33	H (m)		42	42	41	40	39	37	35	31	27	23	18	13
02	4sdm2 / 8	4SD2 / 8	0.37	0.5			57	56	55	54	52	50	46	41	36	30	24	17
03	4sdm2 / 12	4SD2 / 12	0.55	0.75			85	84	82	80	78	74	68	62	54	45	34	25
04	4sdm2 / 15	4SD2 / 15	0.75	1			106	105	103	100	97	93	86	80	67	56	62	32
05	4sdm2 / 17	4SD2 / 17	0.92	1.25			120	119	117	115	111	106	98	88	77	64	50	36
06	4sdm2 / 21	4SD2 / 21	1.1	1.5			149	147	145	141	137	130	120	109	95	78	62	45
07	4sdm2 / 23	4SD2 / 23	1.3	1.75			163	161	159	155	150	143	132	119	104	87	68	49
08	4sdm2 / 25	4SD2 / 25	1.5	2			177	175	173	168	163	155	143	130	113	93	74	54
09	4sdm2 / 32	4SD2 / 32	1.8	2.5			227	225	221	216	209	199	184	166	145	121	91	68
10	4sdm2 / 38	4SD2 / 38	2.2	3			269	267	262	256	248	236	219	197	172	143	112	81
11	4sdm2 / 44	4SD2 / 44	2.6	3.5			312	309	304	297	287	273	253	228	199	166	130	94
12		4SD2 / 50	3	4			354	351	345	337	327	310	283	259	227	189	148	106
13		4SD2 / 56	3.7	5			397	393	387	378	366	348	322	290	254	211	165	119
14		4SD2 / 62	4	5.5			439	435	428	418	405	385	357	321	281	234	183	132

						Burunning diametri: g 1 1 / 4 "~ g {2}} / 2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h L / min		0}	0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h L / min		0}	10	20	30	40	50	60	70	80
01	4sdm3 / 4		0.25	0.33	H (m)		30	29	28	26	23	21	17	12	7
02	Asdm3 / 7	4SD3 / 7	0.37	0.5			53	51	49	46	41	36	29	21	13
03	4sdm3 / 10	4SD3 / 10	0.55	0.75			76	73	70	66	59	51	41	30	19
04	4sdm3 / 12	4SD3 / 12	0.75	1			91	87	84	79	70	62	50	36	22
05	4sdm3 / 13	4SD3 / 13	0.75	1			98	95	91	85	76	67	54	39	24
06	4sdm3 / 14	4SD3 / 14	0.92	1.25			106	102	97	91	82	72	58	42	25
07	4sdm3 / 15	4SD3 / 15	1.1	1.5			114	109	105	99	88	77	62	45	28
08	4sdm3 / 18	4SD3 / 18	1.1	1.5			136	131	126	118	105	93	75	54	33
09	4sdm3 / 19	4SD3 / 19	1.3	1.75			143	138	132	123	112	98	79	57	35
10	4sdm3 / 20	4SD3 / 20	1.5	2			151	146	140	131	117	103	83	60	37
11	4sdm3 / 26	4SD3 / 26	1.8	2.5			196	189	180	168	153	134	109	78	47
12	4sdm3 / 30	4SD3 / 30	2.2	3			226	218	208	194	176	155	125	90	54
13	4sdm3 / 34	4SD3 / 34	2.6	3.5			257	247	236	220	200	175	142	103	61
14		4SD3 / 38	3	4			287	278	264	246	223	196	159	115	69
15		4SD3 / 43	3.7	5			325	313	298	278	252	222	180	130	78
16		4SD3 / 48	4	5.5			362	349	333	310	282	248	201	145	87
17		4SD3 / 55	5	7			415	400	381	356	323	284	230	166	99
18		4SD3 / 62	5.5	7.5			468	451	430	401	364	320	259	187	112

							Burunning diametri: g 1 1 / 4 "~ g {2}} / 2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h	0}		0.6	1.2	1.8	2.4	3.0	3.6	4.2	4.8	5.4	6
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min	0}		10	20	30	40	50	60	70	80	90	100
01	4sdm4 / 6	4SD4 / 6	0.37	0.5	H (m)	42		41	39	38	36	33	30	25	19	13	6
02	4sdm4 / 8	4SD4 / 8	0.55	0.75		57		55	53	50	48	44	40	33	26	17	9
03	4sdm4 / 10	4SD4 / 10	0.75	1		71		68	66	63	60	55	50	42	32	21	11
04	4sdm4 / 12	4SD4 / 12	0.92	1.25		85		82	79	76	72	67	59	50	39	26	13
05	4sdm4 / 14	4SD4 / 14	1.1	1.5		99		96	92	88	84	78	69	58	45	30	15
06	4sdm4 / 16	4SD4 / 16	1.3	1.75		113		109	105	101	96	89	79	67	51	34	17
07	4sdm4 / 18	4SD4 / 18	1.5	2		127		123	118	114	108	100	89	75	58	39	19
08	4sdm4 / 22	4SD4 / 22	1.8	2.5		156		150	144	139	132	122	109	92	71	47	23
09	4sdm4 / 26	4SD4 / 26	2.2	3		184		177	171	164	156	144	129	109	83	56	28
10	4sdm4 / 30	4SD4 / 30	2.6	3.5		212		205	197	189	180	166	149	125	96	64	32
11		4SD4 / 34	3	4		241		232	223	214	203	189	168	142	109	73	36
12		4SD4 / 39	3.7	5		276		266	256	246	233	216	193	163	125	84	42
13		4SD4 / 44	4	5.5		312		300	289	277	263	244	218	184	141	94	47
14		4SD4 / 49	5	7		347		334	322	309	293	272	243	205	157	105	52
15		4SD4 / 54	5.5	7.5		382		368	354	341	323	300	267	226	173	116	57
16		4SD4 / 62	7.5	10		439		423	407	391	371	344	307	259	199	133	66

							Burunning diametri: g 1 1}} {2 "~ g2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h	0}		1.2	2.4	3.6	4.8	6	7.2	8.4
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min	0}		20	40	60	80	100	120	140
01	4sdm6 / 4	4SD6 / 4	0.37	0.5	H (m)	28		27	26	24	21	17	13	8
02	4sdm6 / 5	4SD6 / 5	0.37	0.5		35		34	33	30	26	21	16	10
03	4sdm6 / 6	4SD6 / 6	0.55	0.75		42		40	39	36	32	26	20	13
04	4sdm6 / 8	4SD6 / 8	0.75	1		56		54	52	48	42	35	27	17
05	4sdm6 / 10	4SD6 / 10	0.92	1.25		70		68	66	60	52	42	32	20
06	4sdm6 / 11	4SD6 / 11	1.1	1.5		77		74	71	66	58	48	37	23
07	4SOM6 / 13	4SD6 / 13	1.3	1.75		90		87	84	78	69	57	43	27
08	4sdm6 / 14	4SD6 / 14	1.5	2		98		95	92	84	73	59	45	28
09	4sdm6 / 15	4SD6 / 15	1.5	2		104		101	97	90	80	65	50	32
10	4sdm6 / 17	4SD6 / 17	1.8	2.5		118		114	110	102	90	74	57	36
11	4sdm6 / 20	4SD6 / 20	2.2	3		139		134	129	120	106	87	67	42
12	4sdm6 / 23	4SD6 / 23	2.6	3.5		160		154	148	138	122	100	77	49
13		4SD6 / 26	3	4		181		175	168	156	138	113	86	55
14		4SD6 / 30	3.7	5		209		201	193	180	159	131	100	63
15		4SD6 / 34	4	5.5		237		228	219	204	180	148	113	72
16		4SD6 / 38	5	7		265		255	245	228	202	166	126	80
17		4SD6 / 42	5.5	7.5		292		282	271	252	223	183	140	89
18		4SD6 / 47	6.8	9		327		315	303	282	249	205	156	99
19		4SD6 / 52	7.5	10		362		349	335	312	276	227	173	110

						Burunning diametri: g 1 1}} {2 "~ g2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h		0}	1.2	2.4	3.6	4.8	6	7.2	8.4	9.6	10.8
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min		0}	20	40	60	80	100	120	140	160	180
01	4sdm8 / 4	4SD8 / 4	0.55	0.75	H (m)		25	23	22	21	19	17	16	14	10	7
02	4sdm8 / 5	4SD8 / 5	0.75	0.75			31	29	28	26	24	22	20	17	13	9
03	4sdm8 / 7	4SD8 / 7	0.92	1.25			44	40	39	37	33	30	28	25	18	12
04	4sdm8 / 9	4SD8 / 9	1.1	1.5			56	53	50	47	43	40	37	31	24	16
05	4sdm8 / 10	4SD8 / 10	1.3	1.75			62	59	55	52	48	45	41	35	27	17
06	4sdm8 / 12	4SD8 / 12	1.5	2			75	71	66	62	58	54	49	42	32	21
07	4sdm8 / 14	4SD8 / 14	1.8	2.5			87	83	78	73	68	63	57	49	38	24
08	4sdm8 / 17	4SD8 / 17	2.2	3			106	100	94	88	82	76	69	59	46	29
09	4sdm8 / 20	4SD8 / 20	2.6	3.5			125	118	111	104	97	90	82	70	54	35
10		4SD8 / 23	3	4			143	136	127	119	111	103	94	80	62	40
11		4SD8 / 26	3.7	5			162	153	144	135	126	117	106	90	70	45
12		4SD8 / 29	4	5.5			181	171	161	150	140	130	118	101	78	50
13		4sdd8 / 33	5	7			206	195	183	171	160	149	135	115	89	57
14		4SD8 / 37	5.5	7.5			230	218	205	192	179	167	151	129	99	64
15		4SD8 / 41	6.8	9			255	242	227	213	198	185	167	143	110	71
16		4SD8 / 45	7.5	10			280	265	249	233	218	203	184	157	121	78

												Diametri burunGina2"
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h	0}	1.8	3.6	5.4	7.2	9	10.8	12.6
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min	0}	30	60	90	120	150	180	210
01	4sdm10 / 4	4sd10 / 4	0.75	1	H (m)	25	24	22	21	19	17	12	7
02	4sdm10 / 5	4sd10 / 5	0.75	1		31	30	28	26	24	21	16	8
03	4sdm10 / 6	4sd10 / 6	0.92	1.25		38	36	33	32	29	26	18	11
04	4sdm10 / 7	4sd10 / 7	1.1	1.5		43	41	39	37	34	29	22	11
05	4sdm10 / 8	4sd10 / 8	1.3	1.75		49	47	45	42	39	33	25	13
06	4sdm10 / 9	4SD10 / 9	1.5	2		56	54	50	47	43	38	27	16
07	Asdm10 / 10	4sd10 / 10	1.5	2		62	59	56	52	48	41	31	16
08	4sdm10 / 12	4SD10 / 12	1.8	2.5		74	71	67	63	58	50	37	20
09	4sdm10 / 14	4SD10 / 14	2.2	3		86	83	79	73	68	58	44	23
10	4sdm10 / 16	4sd10 / 16	2.6	3.5		99	95	90	84	77	66	50	26
11		4sd10 / 18	3	4		111	106	101	94	87	74	56	29
12		4sd10 / 20	3.7	5		123	118	112	105	97	83	62	33
13		4sd10 / 22	4	5.5		136	130	123	115	106	91	68	36
14		4SD10 / 25	5	7		154	148	140	131	121	103	78	41
15		4SD10 / 28	5.5	7.5		173	166	157	147	135	116	87	46
16		4SD10 / 32	6.8	9		197	189	180	168	155	132	100	52
17		4SD10 / 36	7.5	10		222	213	202	189	174	149	112	59

							Diametri burunG2 "
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h	0}		1.8	3.6	5.4	7.2	9	10.8	12.6	14.4	16.2
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	L / min	0}		20	60	90	120	150	180	210	240	270
01	4sdm12 / 4	4SD12 / 4	0.75	1	H (m)	25		24	23	21	19	17	15	12	9	5
02	4SOM12 / 5	4SD12 / 5	0.92	1.25		32		30	28	26	24	21	19	15	11	6
03	4sdm12 / 6	4SD12 / 6	1.1	1.5		38		36	34	31	29	26	22	19	13	7
04	Asdm12 / 7	ASD12 / 7	1.3	1.75		44		42	39	37	33	30	26	22	16	8
05	4sdm12 / 8	4SD12 / 8	1.5	2		51		48	45	42	38	34	30	25	18	9
06	4sdm12 / 10	4SD12 / 10	1.8	2.5		63		60	56	52	48	43	37	31	22	12
07	4sdm12 / 12	4SD12 / 12	2.2	3		76		72	68	63	57	51	45	37	27	14
08	4sdm12 / 14	4SD12 / 14	2.6	3.5		88		84	79	73	67	60	52	43	31	16
09		4SD12 / 16	3	4		101		96	90	84	77	69	60	50	36	19
10		4SD12 / 18	3.7	5		114		108	101	94	86	77	67	56	40	21
11		4SD12 / 20	4	5.5		126		120	113	104	96	86	74	62	44	23
12		4SD12 / 23	5	7		145		137	129	120	110	98	86	71	51	27
13		4SD12 / 26	5.5	7.5		164		155	146	136	124	111	97	80	58	30
14		4SD12 / 29	6.8	9		183		173	163	151	139	124	108	90	64	34
15		4SD12 / 32	7.5	10		202		191	180	167	153	137	119	99	71	37

												Diametri burun G2 "
Yo'q	Model		Kuch		Aylanish tezligi: n ≈ 2850 R / min
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h L / min	0}	3	6	9	12	15	18	21
	1 ~ 220-240 v	3 ~ 380-415 v	Kvant	Hp	mbur / h L / min	0}	50	100	150	200	250	300	350
01	4sdm16 / 3	4SD16 / 3	0.75	1	H (m)	17	16	16	14	12	11	9	6
02	4sdm16 / 4	4SD16 / 4	1.1	1.5		22	22	21	19	17	14	11	8
03	4sdm16 / 5	4SD16 / 5	1.3	1.75		28	27	26	24	21	18	14	10
04	4sdm16 / 6	4SD16 / 6	1.5	2		33	33	31	28	25	21	17	12
05	4sdm16 / 8	4SD16 / 8	1.8	2.5		44	44	42	38	33	28	23	17
06	4sdm16 / 9	4SD16 / 9	2.2	3		50	49	47	42	37	32	26	19
07	4sdm16 / 11	4SD16 / 11	2.6	3.5		61	60	57	52	46	39	31	23
08		4SD16 / 12	3	4		67	65	62	57	50	42	34	25
09		4SD16 / 14	3.7	5		78	76	73	66	58	49	40	29
10		4SD16 / 16	4	5.5		89	87	83	76	67	56	45	33
11		4SD16 / 18	5	7		100	98	94	85	75	63	51	37
12		4SD16 / 20	5.5	7.5		111	109	104	94	83	70	57	42
13		4SD16 / 23	6.8	9		128	125	120	109	96	81	65	48
14		4SD16 / 25	7.5	10		139	136	130	118	104	88	71	52

Mahsulotning tafsilotlari

1. Sug'orish uchun chuqur nasoslar turli maqsadlarda, masalan, uy sharoitida foydalanish, fuqarolik va sanoat maqsadlarida foydalanish, sug'orish va hatto bog 'ehtiyojlari uchun qo'llaniladi.

2. Mamlakatiy mamlakat: Xitoy, Jiangdi viloyati

3. Sertifikatlar: ISO9001, ISO14001, ISO45001, CCC, EMC, Rohs va boshqalar

4. Narx: so'rov bo'yicha

5. Material: Mis, zanglamaydigan po'lat, quyma temir va boshqalar

6. To'lov shartlari: TT, LC va boshqalar (kelishuv bo'yicha)

7. Yetkazib berish muddati: kelishuv bo'yicha

8. Qadoqlash: Eksport standarti

9. Birorklar: Yaqin Sharq, Afrika, Osiyo, Janubiy Amerika, Evropa, Shimoliy Amerika, Rossiya, Ukraina va boshqalar

10. Keraklilarga: 1 yil

11. Minimal buyurtma: 500 dona.

Tez-tez beriladigan savollar

Savol: Siz ishlab chiqaruvchi yoki savdo kompaniyangizmi?

Javob: Biz ishlab chiqaruvchimiz. Biz xavfsiz va samarali nasoslar va dvigatellarni ishlab chiqish va ishlab chiqarish bilan shug'ullanamiz.

Savol: Qanday qilib nasoslarning xavfsizligini uzoq vaqt davomida etkazib berishni ta'minlaysiz?

Javob: Bizning nasoslarimiz plyonkaga o'ralgan va ularning xavfsiz etkazib berishlarini ta'minlash uchun, biz ularni po'lat simlardan foydalanib konteynerga tuzatamiz.

Savol: Siz qanday to'lov usullarini qabul qilasiz?

Javob: Hozirgi vaqtda to'lov usullarimiz bank o'tkazmasi 30% oldindan to'lovni amalga oshirishdan oldin 100% to'lovni o'z ichiga oladi, qolgan qismi akkreditatsiya orqali to'lanadi.

Savol: Mijozlarga xizmat ko'rsatish bilan bog'liq muammolarni qanday hal qilasiz?

Javob: Nasosmizning kafolat muddati odatda 12 oy. Ushbu davrda biz darhol almashtirilgan qismlarini tez etkazib berishni ta'minlash uchun xalqaro etkazib berishni tashkil qilamiz.

Issiq teglar: Sug'orish uchun chuqur nasoslar, Xitoy sug'orish ishlab chiqaruvchilari, etkazib beruvchilar, fabrikalar uchun chuqur nasoslar

chuqur sug'orish nasoslari

Qisqa kirish

Texnik parametrlar

Texnik parametrlar

Mahsulotning tafsilotlari

Tez-tez beriladigan savollar
